TOPDON TC002 Thermal Imaging Camera For iOS with IR Resolution of 256 x 192px, Temperature Range from -20°C to +550°C
Product Type: THREMAL IMAGING CAMERA
SKU: TC001 IOS
Weight: 0.35 kg
Vendor: TOPDON
Share
Guaranteed Safe Checkout
Product Description
TOPDON TC002 Thermal Imaging Camera - See More Than The Human Eye
- 1. 256 x 192 high resolution delivers images with great clarity.
- 2. Read temperatures of objects ranging between -20℃ to 550℃.
- 3. High thermal sensitivity (40mk), detects temperatures with extreme accuracy 0.1℉ (0.1℃),
- 4. A maximum of ±2℃ or 2% for error.
- 5. 25Hz refresh rate enables the TC002 to read temperatures smoothly and reduce eye strain.

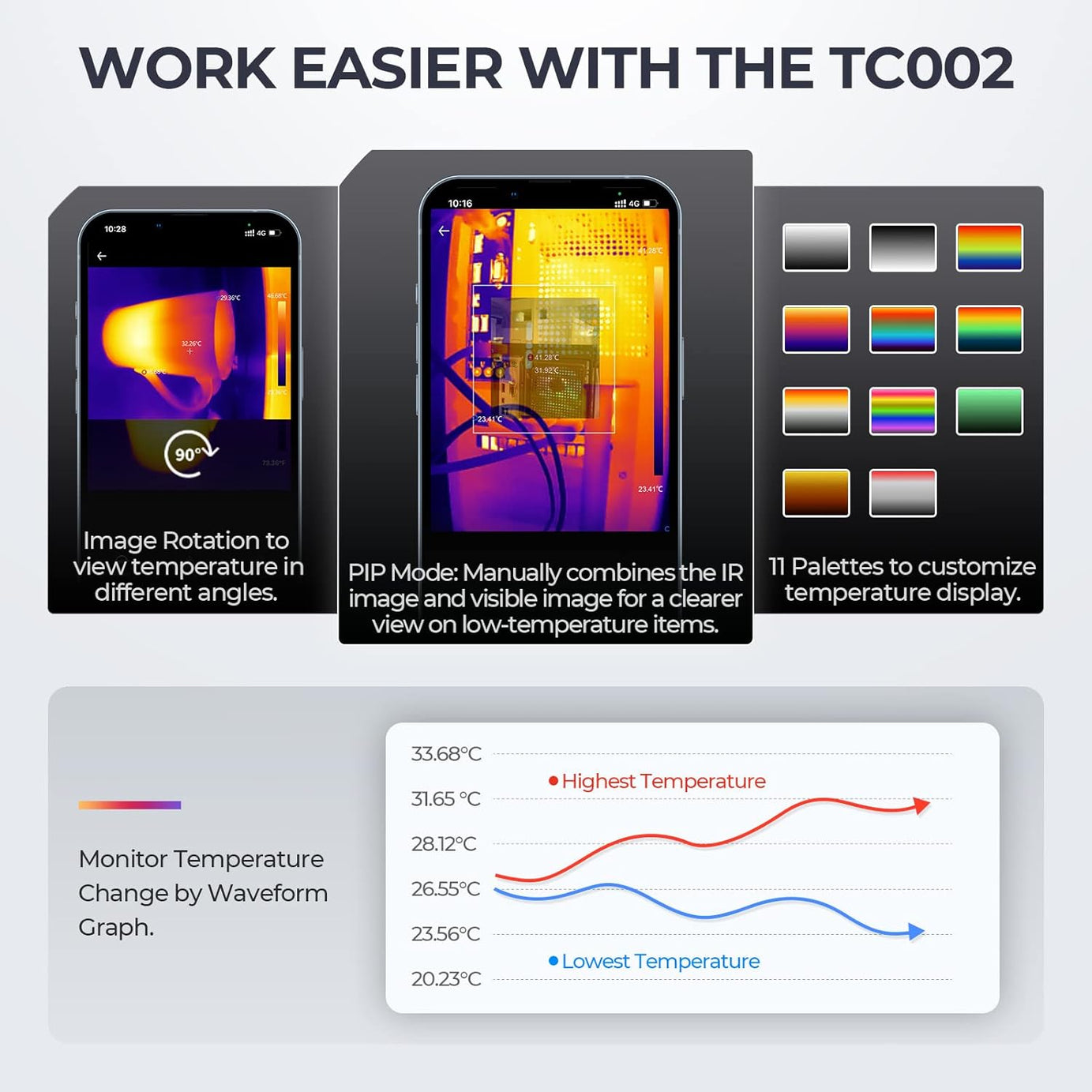

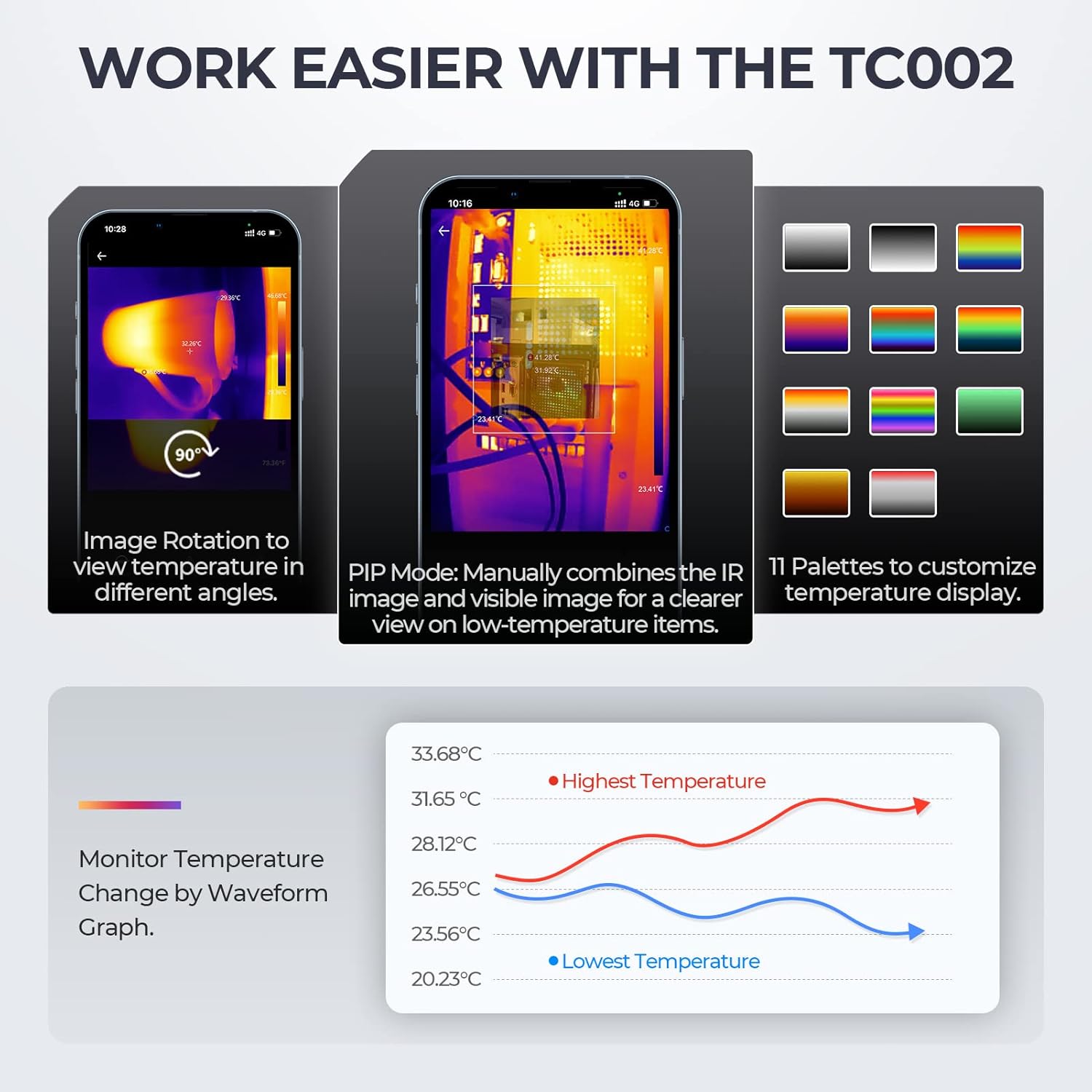

- 6. 11 optional color palettes customize the temperature display.
- 7. Picture-in-Picture mode combines IR imaging and visible imaging.
- 8. 3 Analysis Dimensions: Point, Line, and Surface mode.
- 9. Set upper and lower limits, and choose colors to display the temperature difference clearly.
- 10. Support Photo & Video recording, and monitoring temperature by waveform change.

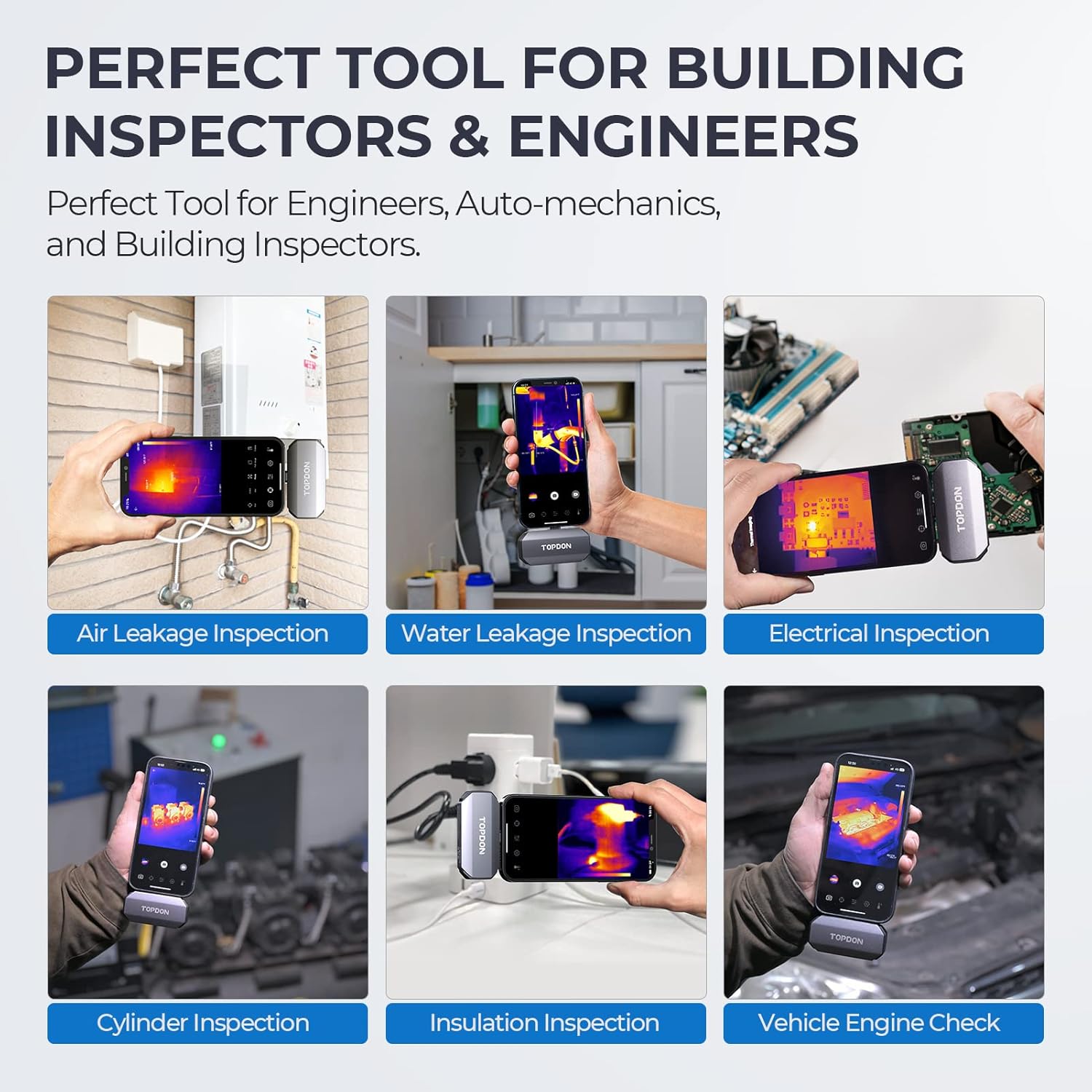

Detect Temperature Accurately in Extensive Applications

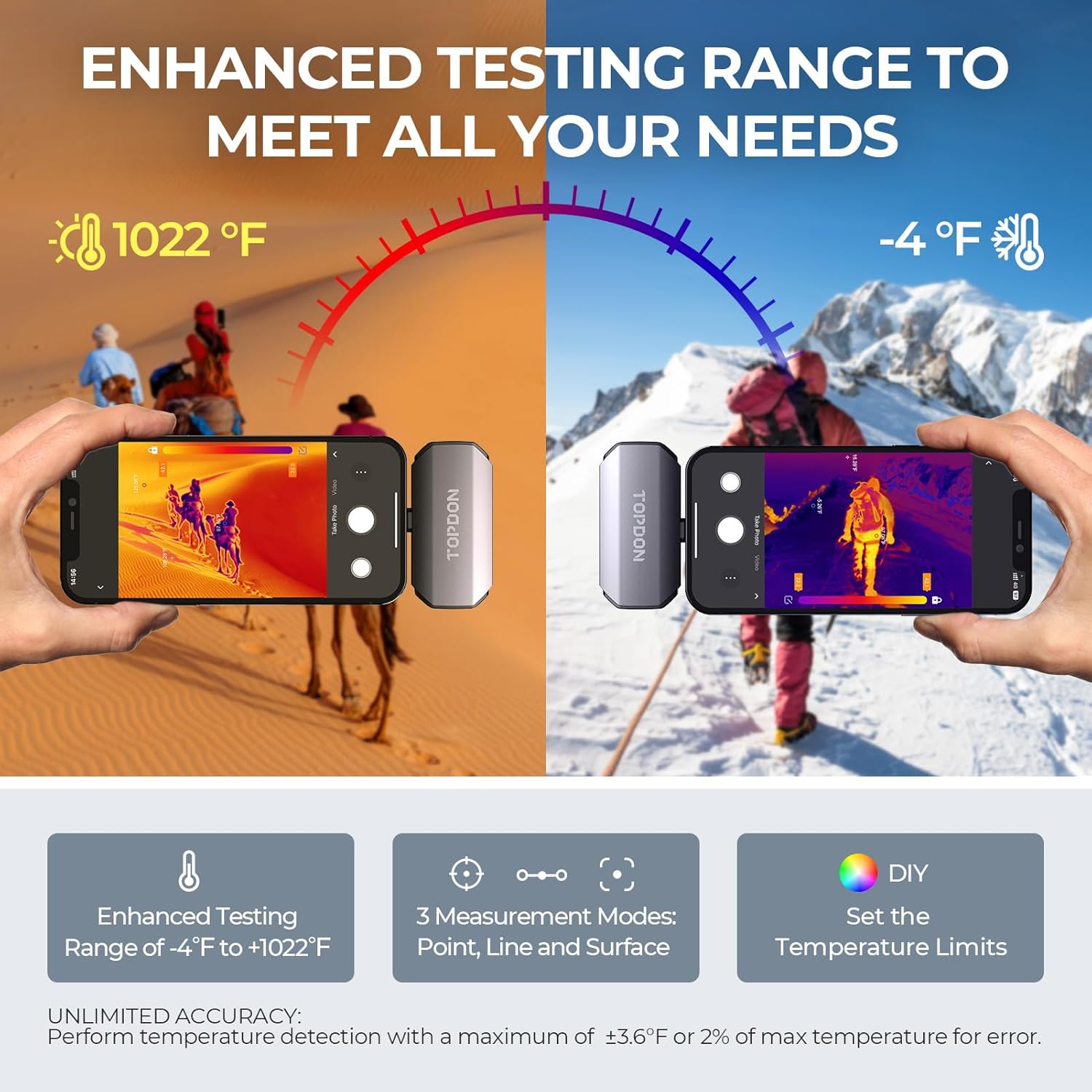

Expansive testing range of -20℃ to 550℃(-4℉ to +1022℉) enables the TC002 to perform temperature reading in most environments. 40mk high thermal sensitivity can sense detailed temperature changes (Lower mk = higher sensitivity and better imaging). This thermal imager can perform temperature detection with ±2℃ or 2% of max temperature for error and measure temperatures down to 0.1℃ accuracy.
Note: The thermal error will be less than ±1℃ when the target temperature is below 100℃.
Unlimited Accuracy, Unlimited Clarity
The TOPDON TC002 Thermal Imager steps beyond most thermal cameras by offering clear images with more detail. Adjust image sharpness and contrast to make the field of view clearer.

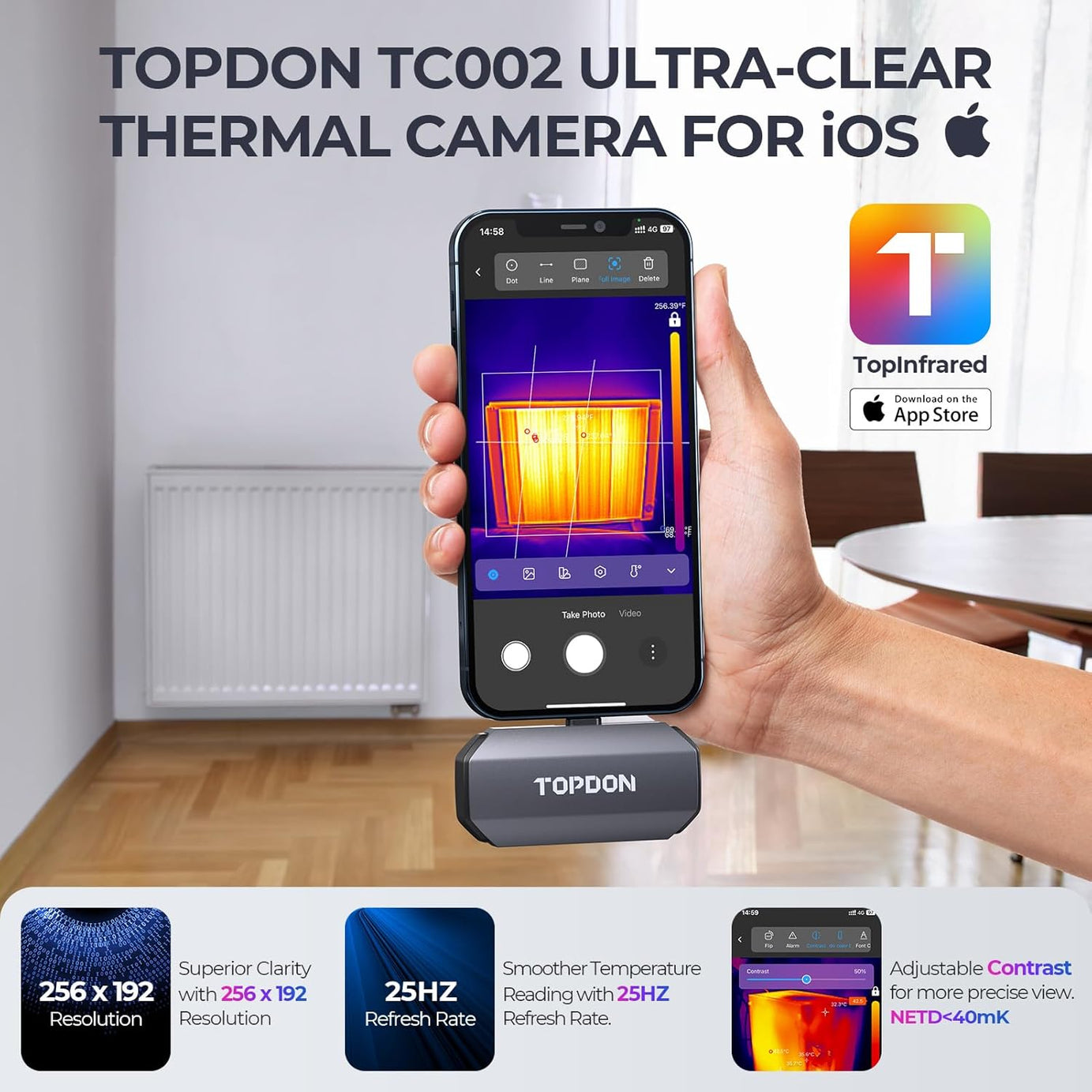

With Picture-in-Picture mode, this infrared thermal camera can combine the IR image and visible image taken by a mobile camera, making it easier to identify what you're seeing on the screen or to pinpoint the source of a problem.
Features
• Superior Image Quality with an IR Resolution of 256x192
• Low power consumption of only 0.25W
• Compatible with iOS devices that have a Lightning port only.
• Enhanced Testing Range of -4°F to 1022°F (-20C to 550C)
• Three Temperature-Reading Dimensions (high, low, and aim point)
• Customizable Temperature Range
• Generate Temperature Graph for monitoring and logging data
• Image Enhancement Technology
• Plug'n'play, registration not required
• Use with TOPDON's the free app: TopInfrared found in the Apple Store
Specifications
• Spectral Range: 8~14μm
• IR Resolution: 256×192
• Pixel Size: 12μm
• Frame Rate: 25Hz
• Object Temperature Ranges: -20~150°C (-4~302°F), 150°C~550°C (302~1022°F)
• Accuracy±2ºC or ±2% of reading
• Dimensions 71x42x14mm, weight 30g

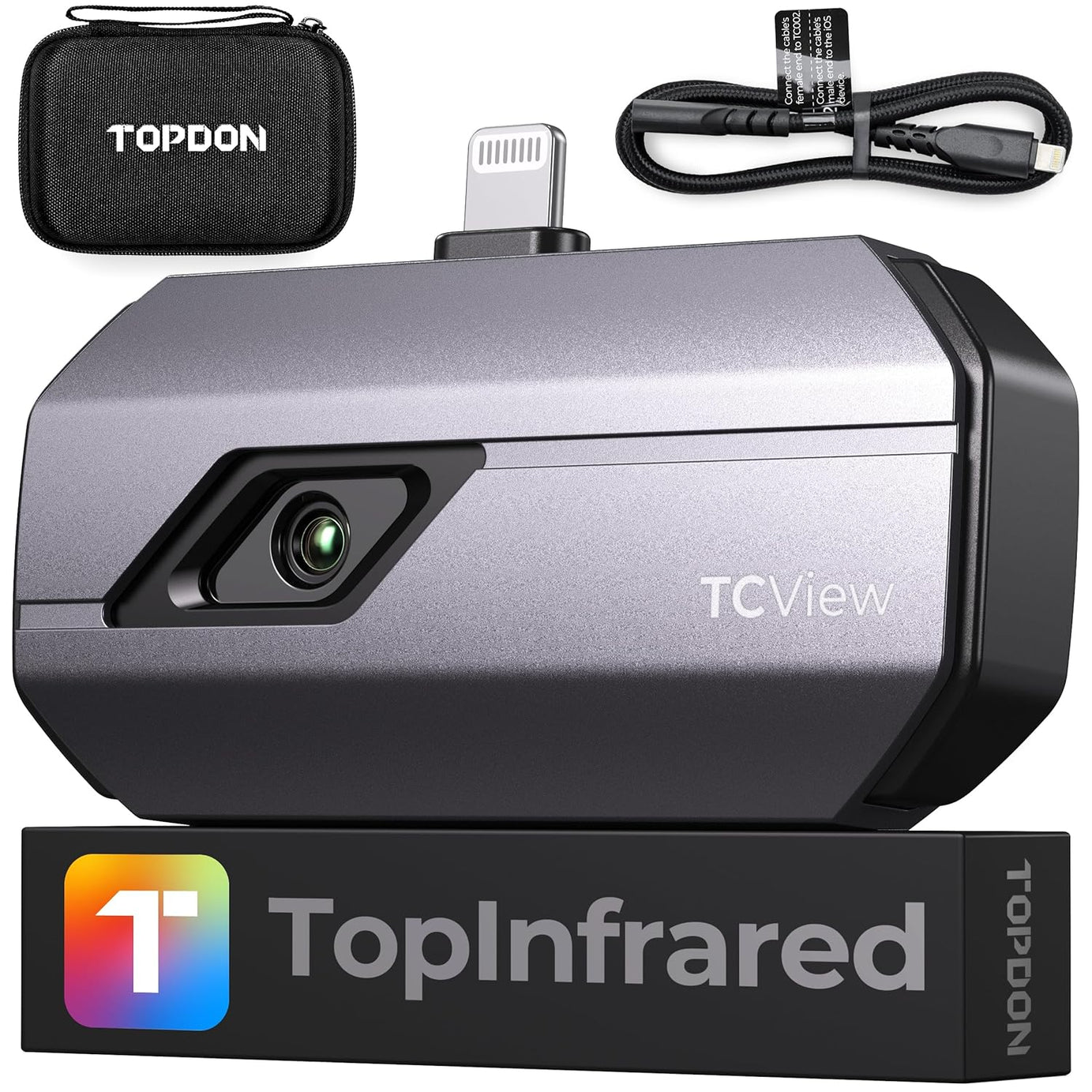

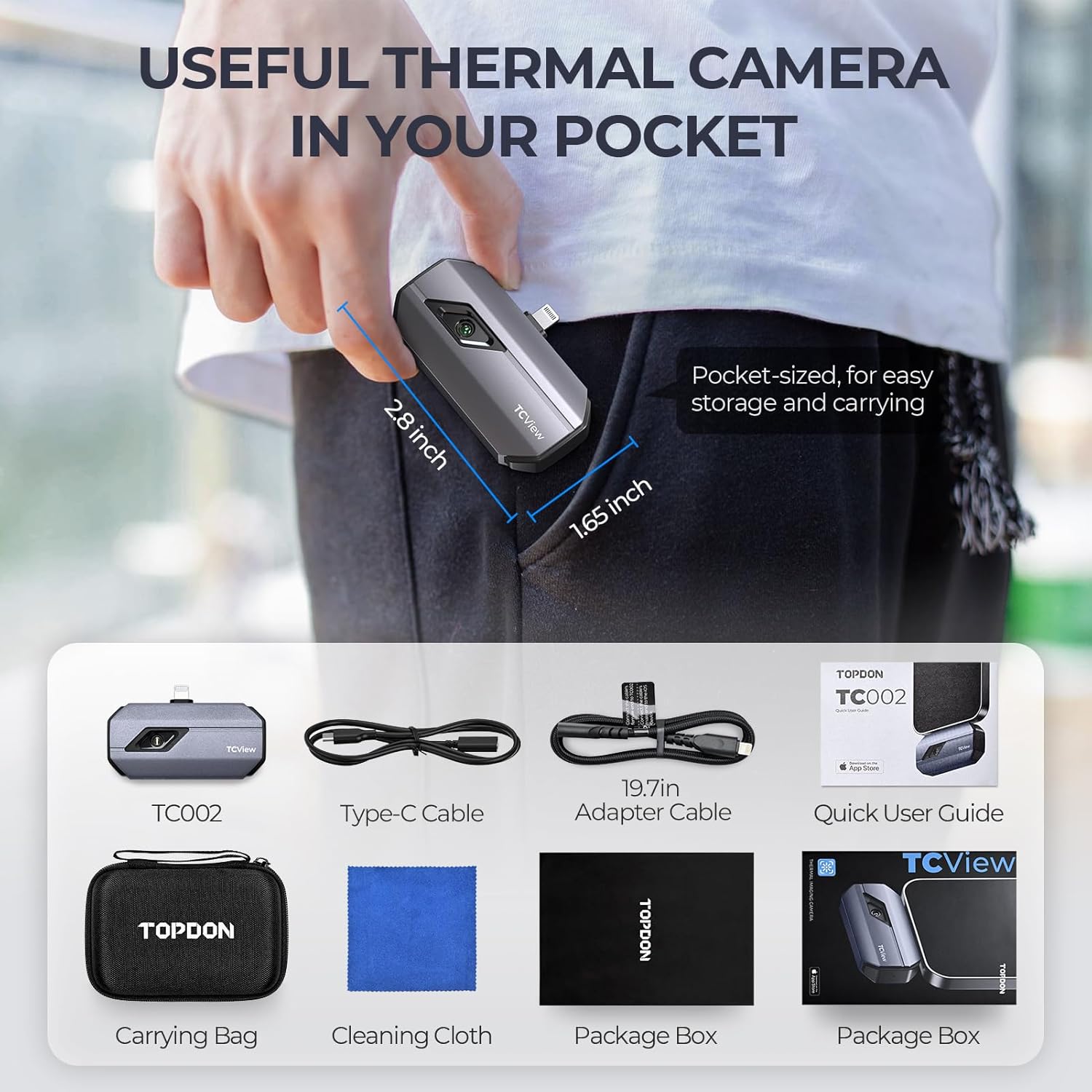

Contents
• TC002 Thermal Imaging Camera
• USB-C to USB-A Adapter
• Carrying Bag
• Cleaning Cloth
• Quick User Guide
• 1-Year Warranty
| IR Resolution | 256 x 192px |
| Temperature Range | -20°C to +550°C |
| Thermal Sensitivity | 40mK |
| Compatibility | iOS devices (iPhone 6 and above, iPad) |
| Dimensions | 71 x 42 x 14 mm |
| Weight | 30 g |
| Color Palettes | 11 |
| Battery Life | 6-8 hours (iPhone), 8-10 hours (iPad) |
Customer Reviews
I got tired of packing around a big bulky infrared gun style camera and on a whim bought one of these. I honestly expected it not to work that great but thought I could use it occasionally when in tight spots. I have not used the big expensive infrared camera I have since buying this one almost a year ago. This is amazing and way exceeded my expectations. I use it daily and its a gem. LOVE IT!!!!
I compared this camera to ones offered by FLIR. This camera has great technical specifications and a really competitive price. I like plugging it into my iPhone and when I need to get into hard to reach places the extension cord comes in handy. Definitely a must have tool for troubleshooting water leaks and identifying hot electrical wires. You can even see wall studs if you aim it at an exterior wall that has been warmed by the sun.
Fantastic addition to your troubleshooting! Works with exceptional accuracy and ingenious functions. Perfect for industrial electrician for a fraction of a handheld device.
I use mine to identify unwanted bee locations inside a house. Less hunting around to find a hive and less damage to a homeowners house making you a “Hero”. Also I can see where my bees are wintering inside their hive instead of disturbing them with taps to hear them hum.
I have used this camera several times. For different reasons.First couple of pictures is an electric panel and it shows a hot breaker, the cause was determined to be loose connections at the screw terminals.Third picture is a 100 pound propane tank, you can see the level of liquid still in the tank! Last picture is my generator running during a power outage.Glad I bought this , but which I had it years ago!!!!!!!!!!!
