TOPDON TC004 High Resolution 256*192 Handheld Android Thermal Scanner Imaging Camera
Product Type: THREMAL IMAGING CAMERA
Weight: 0.5 kg
Vendor: TOPDON
Share
Guaranteed Safe Checkout
High Resolution & Thermal Sensitivity
The TC004 features a high-resolution thermal camera with a resolution of 256x192. This allows users to capture more details and say goodbye to blurry images.
A high thermal sensitivity of 0.05℃ allows the TC004 to distinguish between tiny temperature differences.
Three Measurement Modes & Auto-Detection
The TC004 has three different measurements to detect center, hot and cold spots.
The automatic detection feature allows users view temperature differences more visually.
Wide FOV
The TC004 also features a wide 56° FOV for to easily capture more objects in view. There is also no need to adjust focal length.
Wide Measurement Range & Accuracy
The TC004 features a wide temperature measurement range of -20℃ - +350℃. It can also measure temperatures with ±2℃ accuracy for precise temperature measurements.
NETD of this high-precision infrared sensor is less than 40mK and thermal imaging resolution displays down to 0.1℃. The tool's margin of error is less than 2%. This is to ensure the upmost accurate thermal readings.
PC Image Analysis and Instant Projection
Professional analysis software allows users to easily save and share diagnostic data on a PC. The TC004 also supports screen projection on a PC as well.

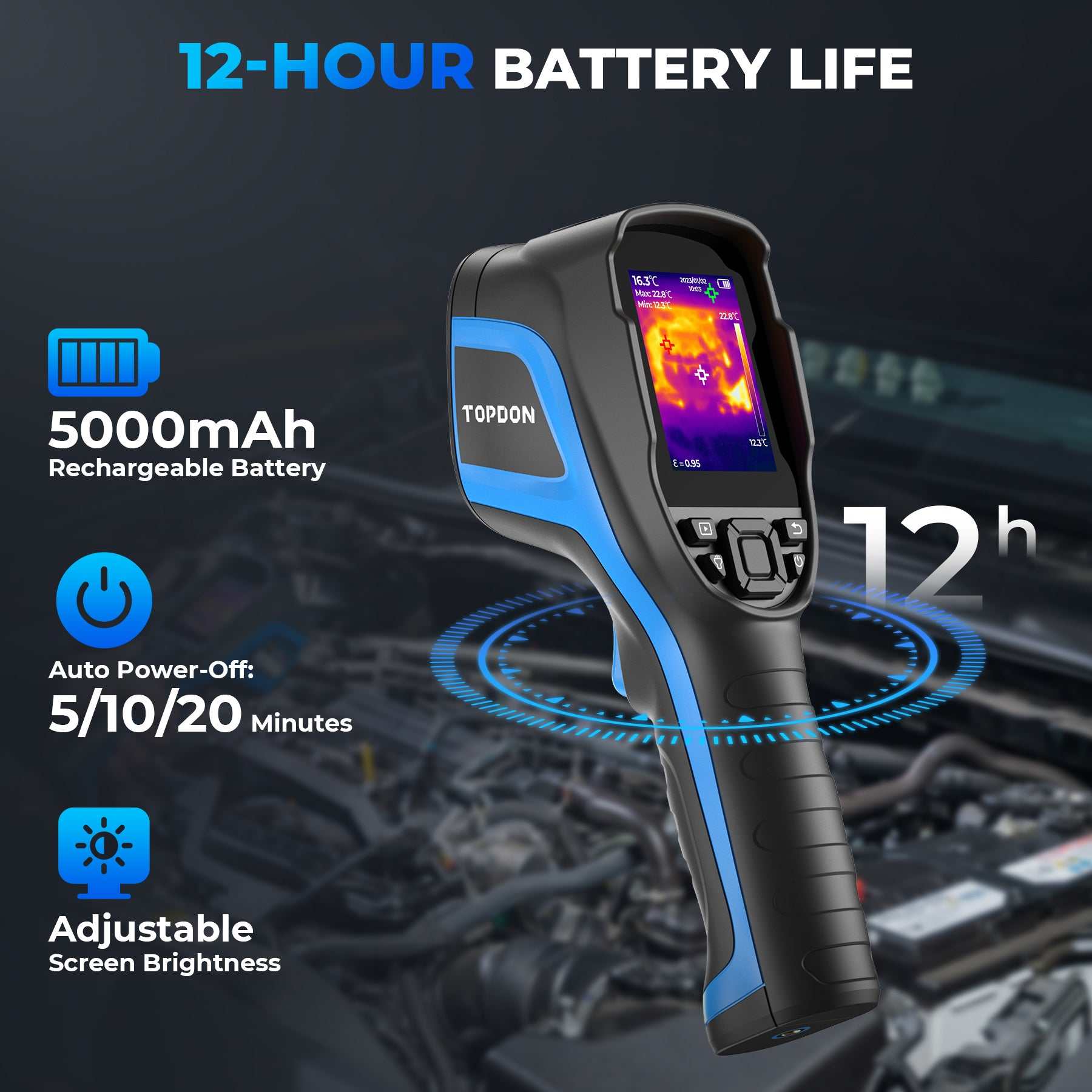

One-Day Runtime
A powerful integrated battery allows the TC004 to have a 12-hour runtime.
Built-in Fill LED Light
A built-in LED light allows users to record thermal readings without an additional light source.
Compact and Solid Design
IP54 rated for protection against water and dust and 2m drop proof allows you to be more carefree while using the device.
