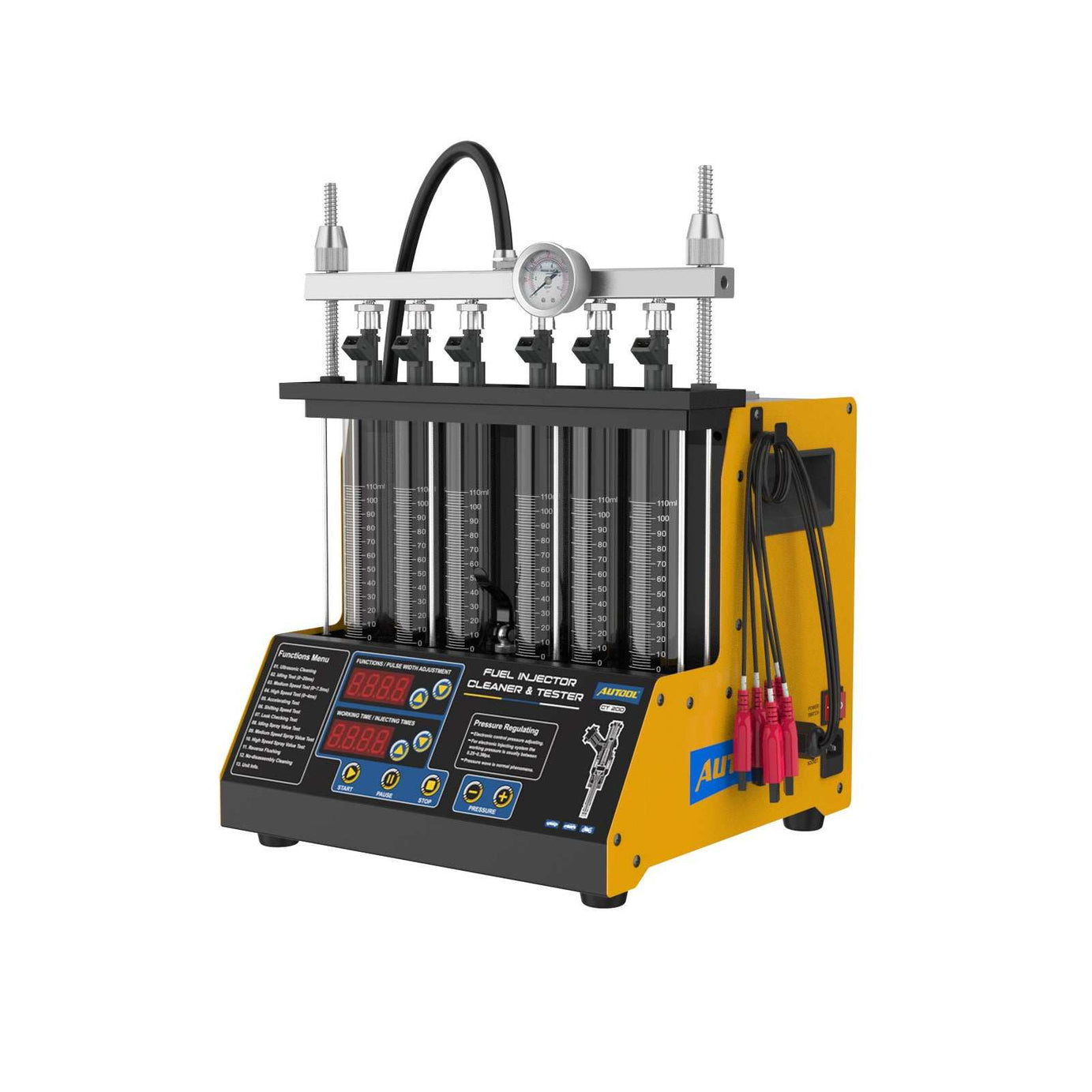

AUTOOL CT200 ultrasonic fuel injector cleaner & Tester
Rs. 55,000
Rs. 99,500
Product Type: Fuel Injector Cleaners
SKU: CNC602A
Weight: 5.4 kg
Vendor: AUTOOL
Get FREE SHIPPING if the check amount is more than Rs. 100.00
Share
Guaranteed Safe Checkout
Get your car running smoothly with the AUTOOL CT200 ultrasonic fuel injector cleaner, a powerful injector tester that combines ultrasonic cleaning technology with microprocessor-controlled hydraulic detection. With 3 cleaning functions and 9 detection functions, this machine is perfect for any car enthusiast or mechanic. Plus, with a 3-year warranty and lifetime maintenance, you can trust that your investment is protected.
Operation Steps
- Ultrasonic Cleaning:
- Step 1: Pour in the detergent and place the fuel injector in the ultrasonic cleaner.
- Step 2: Connect the pulse signal wire & select the ultrasonic cleaning function to start working.
- Fuel Injector Testing:
- Step 1: Pour in the test liquid, install this injector to the fuel distributor, and fix it to the main unit by bolts.
- Step 2: Test if the fuel injector is leaking or blocked under different functions.
How To Use AUTOOL CT200 Fuel Injector Cleaner Tester?
- Clean injectors outside with gasoline or cleaning liquid before opening the machine
- Putting injectors in the ultrasonic bathtub after the outside of the injector is free of dirt.
- Turn on the ultrasonic system， pulsed allowing the ultrasonic energy to dislodge any particles that even build up inside the injectors.
- Fixed injectors on the main machine.
- Testing injectors for resistance, shorts, and current draw.
- Performing leak test, spray pattern, and flow rate testing on the flow bench.
- The injectors are now returned to the flow bench for retesting of all functions.
AUTOOL CT200 ultrasonic fuel injector cleaner Tester & Cleaner Machine Features：
- Digital Display: With the help of microcomputer control and digital display, the equipment makes possible automatic cleaning, testing injectors, and real-time monitoring of the dynamic values.
- Adopting Humanization Design: Automatic fuel draining through preset programs for some test items. At the end of the test, pressing the button on the control panel, and draining the test fluid/cleaner, quickly restored the system pressure to its default value.
- Automatic Cleaning and Testing: Fuel pressure control through microcomputer offers stable pressure control and a large adjustable range, which is suitable for all EGI vehicles and can help to achieve automatic cleaning and testing of injectors.
- Reverse Flush: Uniformity/Sprayability test: To test the uniformity of injecting amount of each injector, and to monitor the spraying status of each injector with the help of backlight. This test is also for reverse flush.
- Three-Year Warranty, Lifetime Maintenance: For damage caused by non-human factors, AUTOOL promises to resend parts for free within 3 years. For any needs, you are warmly welcome to contact us and we will get back to you ASAP within 24 hours.
AUTOOL CT200 ultrasonic fuel injector cleaner Tester & Cleaner Machine Functions：
- ultrasonic fuel injector cleaner: It sends signals to the injectors through the pulse signal line, using the cleaning fluid with ultrasonic vibration so as to completely remove the carbon and impurities inside the injectors.
- Idle speed test (0-20ms): Simulate the engine idling speed and test the state of the fuel injector.
- Medium speed test (0-7.5ms): simulate the engine running at medium speed and test the state of the fuel injector.
- High-speed test (0-4ms): Simulate the high-speed performance of the engine and test the state of the fuel injector.
- Acceleration test: Simulate the acceleration state of the car and test the performance of the fuel injector.
- Shift speed test: Simulate the shifting state of the car and test the working performance of the fuel injector.
- Leakage test: Test the sealing condition of the fuel injector.
- Idle speed sprayability Test: Simulate the engine idling state and test the spraying performance of the fuel injector.
- Medium-speed sprayability test: Simulate the engine’s medium-speed state and test the spraying performance of the fuel injector.
- High-speed sprayability test: Simulate the high-speed state of the engine and test the spraying performance of the fuel injector.
- Reverse flush: Reverse flush is a way to clean the injectors with the test liquid flowing from the outlet to the inlet of the injector. Reverse flush may remove the dirt inside the injector or the injector Strainer (Only for the top fuel supply injector).
- No-disassembly cleaning: Direct cleaning without disassembling the injectors, this function is an additional function, that requires special adapters.
Packing List
| Material | High-quality metal and plastic |
| Dimensions | (L x W x H) 12.6 x 7.9 x 8.7 in |
| Weight | 11.9 lbs |
| Power Source | AC 110V/220V, 50/60Hz |
| Cleaning Functions | 3 |
| Detection Functions | 9 |
| Warranty | 3 years |
| Maintenance | Lifetime |
