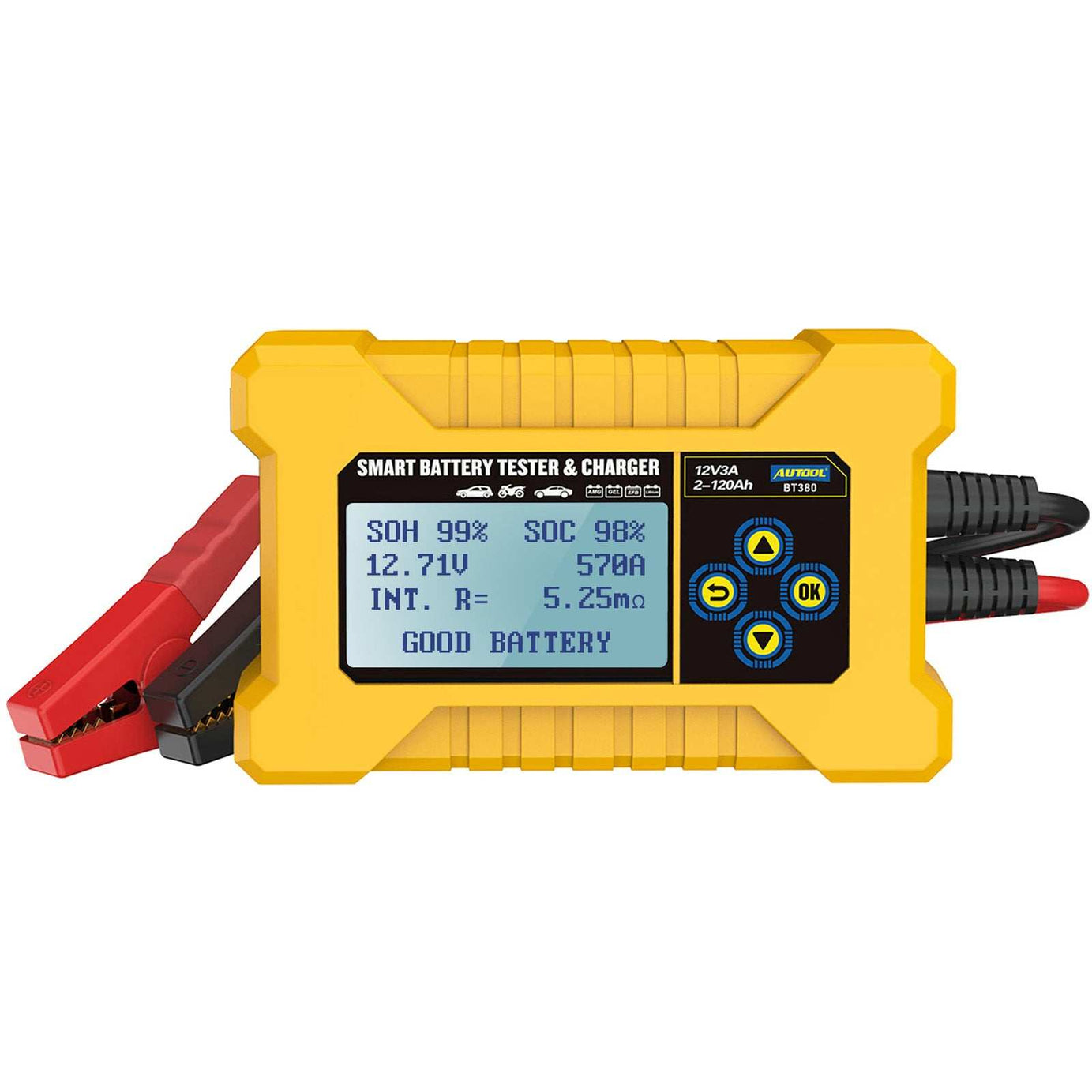

The AUTOOL BT380 is an advanced car Battery Analyzer that supports both testing and recharging of vehicle batteries. It adopts the most advanced conductance measurement technology, which can easily, quickly, and accurately test the vehicle starting system, vehicle charging system, and vehicle battery as well as recharge the 12V vehicle battery. With its powerful and easy-to-operate design, the BT380 Battery Analyzer is a must-have tool for any car owner or mechanic.
Packing List
- 1PC * BT380 Main Unit;
- 1PC * Battery Clamp Cable;
- 1PC * User Manual.
Battery Type |
Battery Analyzer Tests the starting system, charging system, and starting lead-acid batteries on all 12V vehicles, including common lead-acid batteries, AGM flat plate batteries, AGM spiral batteries, and GEL batteries. |
Testing Standards |
CCA, JIS, DIN, IEC, EN, SAE, and GB |
Input Voltage |
100VAC-240VAC |
Charging Voltage |
14.70V |
Maximum Charging Current |
3A |
Test Range |
100~2000 CCA, 100~1200 DIN, 100~1200 IEC, 100~1700 AH |
Working Environment Temperature |
-20°C-50°C |
Size |
130*80*46mm |
Weight |
0.51kg |
